How to play
Drag each component onto the correct position of the pipeline. Place the air vent at the high point, the gauge at the low point, isolate the pump, and fit a thermal relief valve. Then run the hydrotest.
ASME B31.3 Para 345.4.1
Drag these components onto the stage

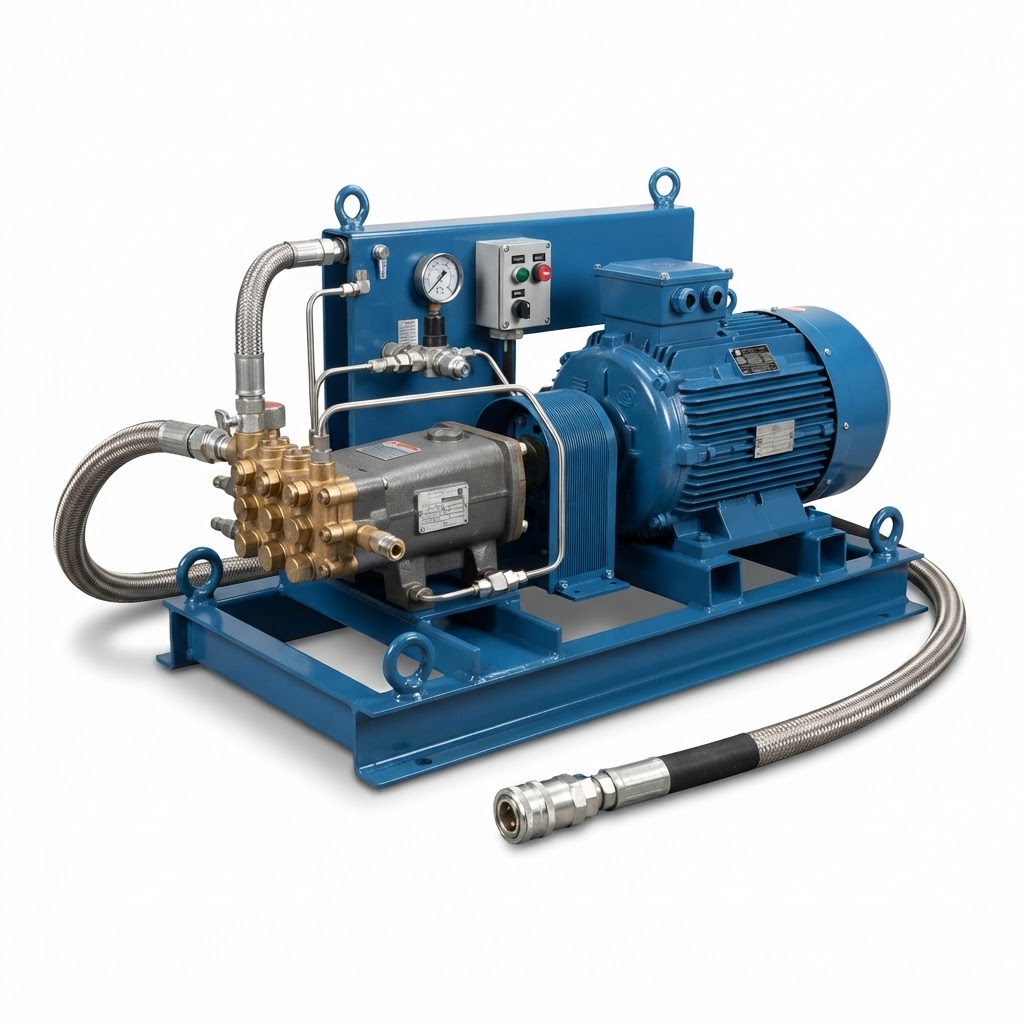

High-Pressure Pump

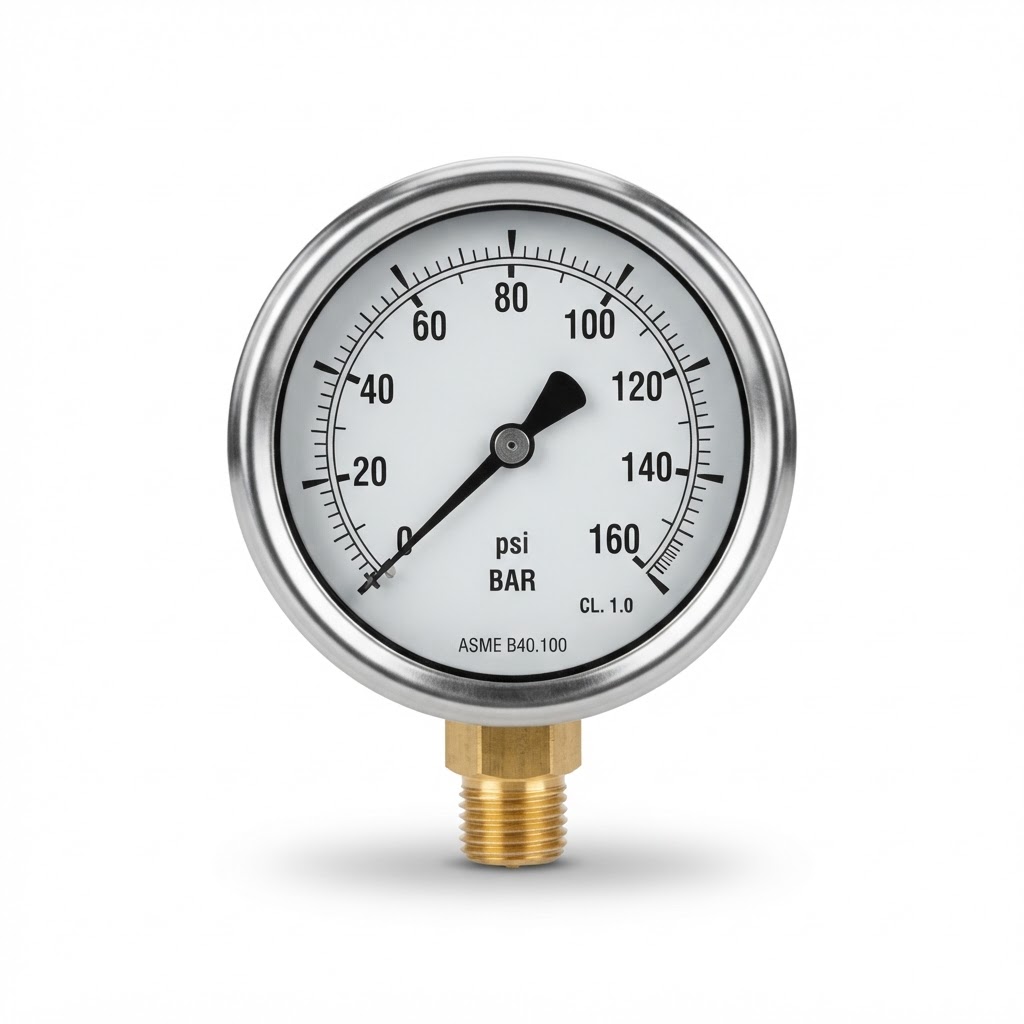

Calibrated Pressure Gauge

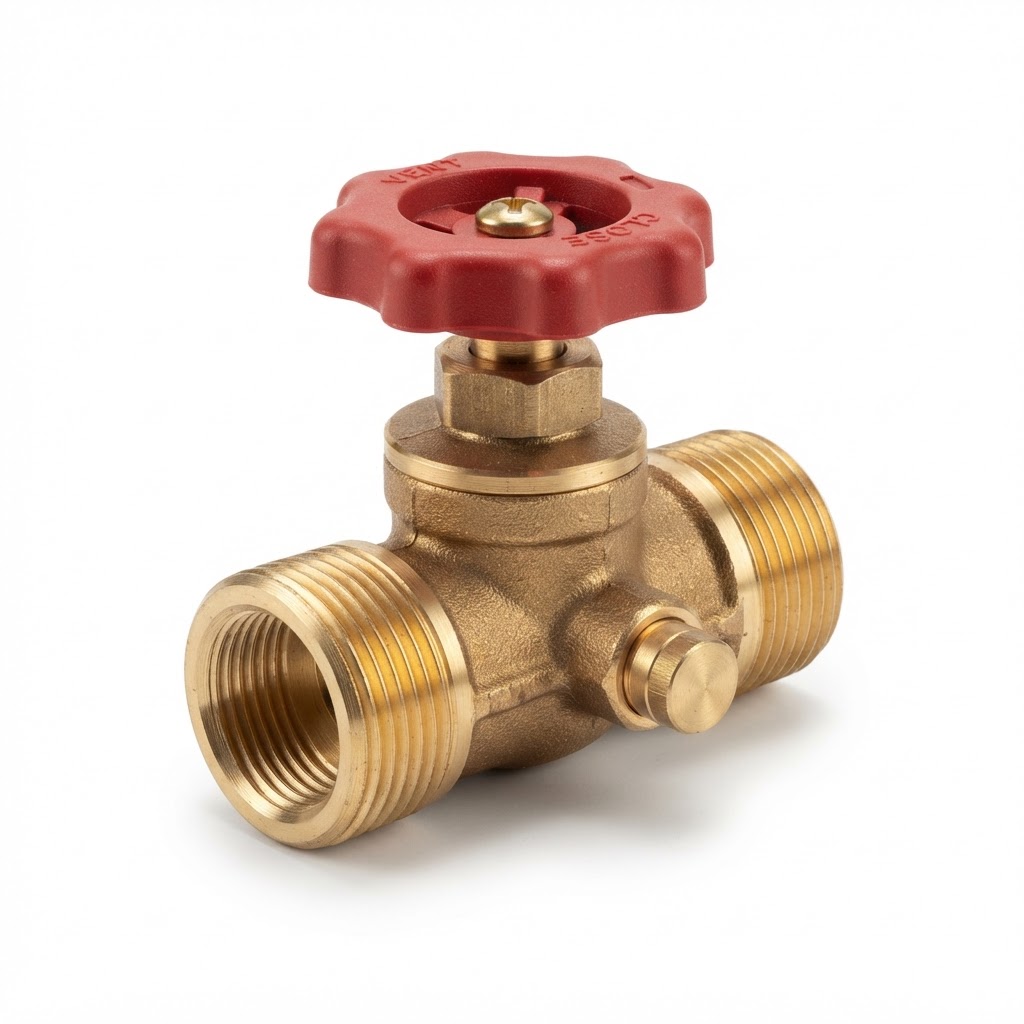

Air Vent Valve

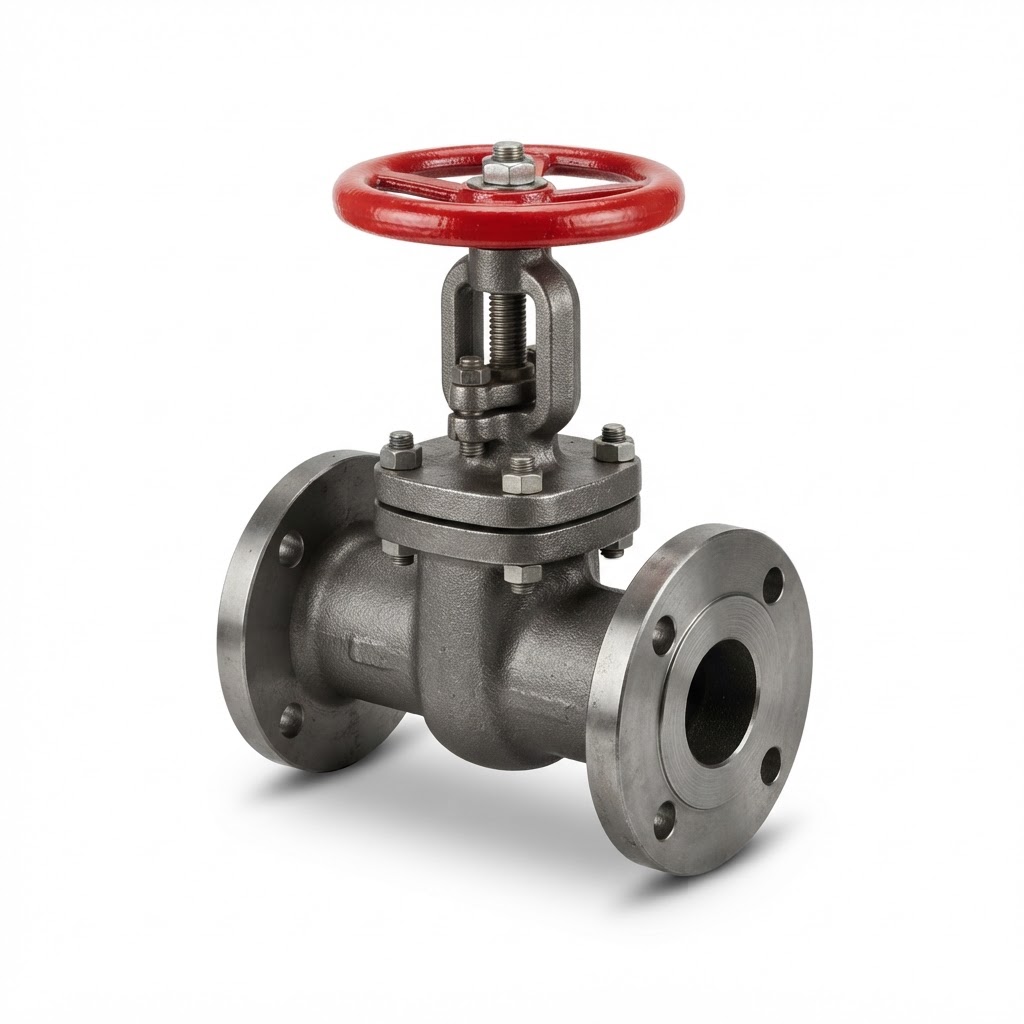

Isolation Valve

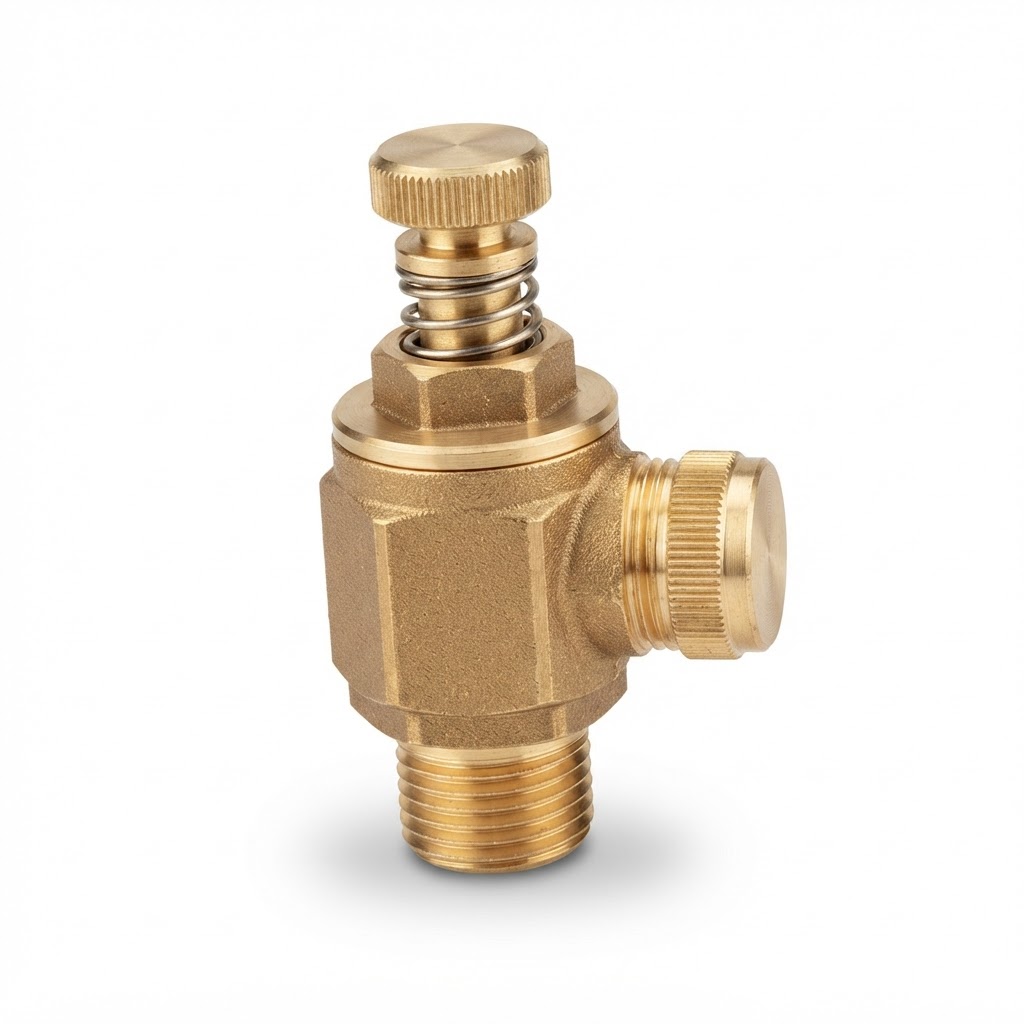

Thermal Relief ValvePump Connection
High Point
Low Point Drain
Pump Isolation
Thermal Relief Tap
